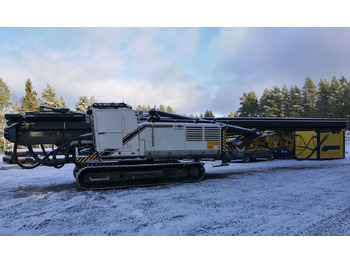

Máy đóng cọc Junttan MPx50

3,200 Hours

Rotary head RHP14DTH

Static torque max. 95 kNm

Dynamic torque max. 140 kNm

RMP 10…30

Static axial load maximum 700 kN

Dynamic axial load maximum 600 kN

Hydraulic 90 degrees tilt sledge

Maximum casing length 24 m

Casing diam.max. Ø 1016 mm

Cummins QSL 9 Tier 4f-283kw@2 100 rpm

Hydraulics Max flow 2×380 l/min@2000 rpm

Max pressure 350 bar

Lower carriage

Track efficient length 5 700 mm

Bended triple groused track shoe, width 900 mm

Extendable track frames

Minimum width with 900 mm shoe 3 200 mm

Maximum width with 900 mm shoe 4 850 mm

Working weight without casing and drilling string 85 500 kg

Transport weight (1) below items removed 70 500 kg

Rotary head with tilt device 6 300 kg

Clamping device with lower mast piece 3 500 kg

Counterweight: 10,200kg

Operating Weight: 89,500kg

PRICE: POA
