LIDER LIDER 2025 UNUSED NEW FROM MANUFACTURER
Kögel S24-1 NEW Liftachse Bordwände
25 900EUR
Giá chưa có thuế GTGT
- ≈ 799 175 580 VND
- ≈ 30 552 USD
Kögel S24-1 NEW Liftachse Bordwände
25 900EUR
Giá chưa có thuế GTGT
- ≈ 799 175 580 VND
- ≈ 30 552 USD

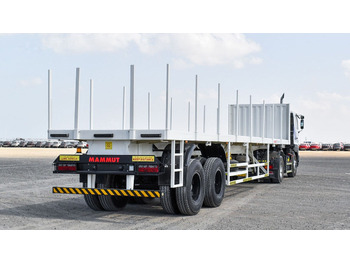

Sơ mi rơ moóc thùng lửng/ Phẳng mới Mammut New
Được phát hành: 1Năm 5Tháng
Được phát hành: 1Năm 5Tháng
Length:
13,050 mm
Width:
2,600 mm
Bed Length:
12,565 mm
Bed Width:
2,500 (approx)
Bed Height:
1,760 mm
Construction Chassis:
Longitudinal members of Hot rolled/welded I beams of Grade ST 52-3 or equivalent. All other pressed steel channels/plates of Grade ST 37-2 or equivalent.
Floor:
4 mm chequered plate mounted on suitable cross members
Front Head Board:
1500 mm Headboard fabricated from steel plate, corrugated with vertical supports/pillars and tarpaulin basket.
Axle:
2 x 16 Tons Tandem bogie type axles.
Tyres:
8+1 nos.12.00 R24” tyres
Rims:
8+1 nos. 8.50 x 24” suitable rims
Brakes:
Twin line drum brakes, acting on all wheels with ‘S’ cam actuation. Two single acting diaphragm brake chambers per axle. Service & emergency relay valves. Automatic load sensing valve. Air reservoir.
Landing Gear:
Two speed mechanical, telescopic type.
King Pin:
3.5” dia. to SAE standard interchangeable to 2
Electrics:
"7 way quick release connector, Pair of 24 volts rear light units, each comprising tail light, brake and signal lights fitted with high intensity bulbs Aspock® or equivalent. 4 nos. side markers on either side, Registration plate lamps, Reverse light with horn, Revolving beacon.
Painting System:
Surface treatment Grit blasted to S.A.2.5 One coat of Zinc rich epoxy primer and top coat of High gloss Polyurethane finish paint in single color. (Paint White).
Warranty:
One year from the date of delivery of product from all manufacturing defects.
Interior features & Safety
Mudguards with rubber mud flaps.
Basket type spare wheel carrier.
1200 mm side stakes with pockets (8+8+2)
Heavy duty rear bumper with reflecting stripes as per local requirements
1 no. tool box. (without tools)
5 nos. ratchet type lashing mechanism. (3+2)
Provision for registration plate fixing.
8 nos. twist locks suitable for 2x20’ containers/1x40’ container.
Access ladder at rear
1 no. water tank
Side under run protection as per local requirements.
1 no.Fire extinguisher bracket.B21"
