Cho thuê XCMG QY70KC 70TON QY70K QY70KA QY70K-1 xcmg qy70ks

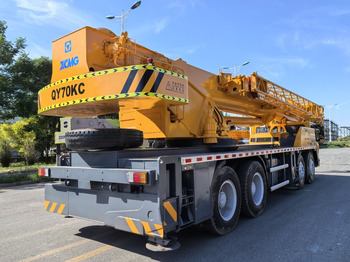

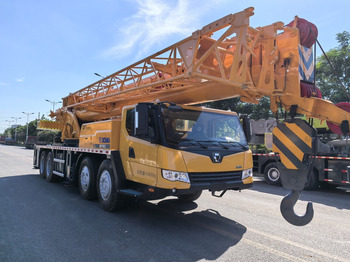

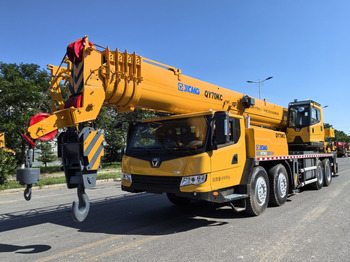

XCMG QY70KC - Hydraulic Control Crane Parameter Configuration

Lifting capacity

Maximum rated lifting capacity (t) 70

Minimum working range (m) 3

Maximum rated lifting torque (KN. m) 2303

Maximum lifting height - basic arm (m) 11.8

Maximum lifting height - fully extended arm (m) 44.2

Maximum lifting height - basic arm+auxiliary arm (m) 59.4

Maximum lifting capacity (ton) below 45 tons

Maximum lifting capacity (ton) below 45 tons

Crane arm size

Crane arm length - Basic arm (m) 11.6

Crane arm length - fully extended arm (m) 44.5

Crane arm length - basic arm+auxiliary arm (m) 59.5

Homework speed parameter

The maximum lifting speed of the main winch (m/min) is 75 full load and 130 empty load

The maximum lifting speed of the auxiliary winch (m/min) is 98 full load and 108 empty load

Crane arm full extension time (s) 150

Crane boom amplitude time (s) 60

Rotation speed (rpm) 2

engine

Chassis engine model WD615.338/WP10.375/SC9DF375Q3

Rated power (kw/rpm) 276/2200 276/2200 275/2200

Driving parameters

Maximum driving speed (km/h) 80

Minimum turning radius (m) 12

Maximum climbing gradient (%) 40

Approach angle/departure angle (°) November 19th

Minimum ground clearance (mm) 327

Whole machine specifications

Total length of the machine (mm) 13930

Overall width of the machine (mm) 2800

Whole machine height (mm) 3575/3630

Total weight (t) 43

Wheelbase (mm) 1470+4105+1350

Leg span

Vertical x Horizontal (m) 6.1 x 7.3
