Máy xúc lật bánh lốp mới QINGDAO PROMISING 5.0T Font Wheel Loader ZL50F

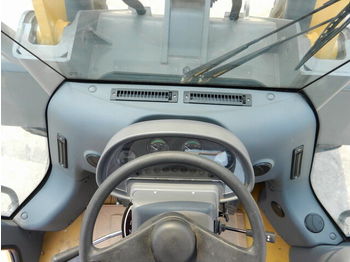

5 ton capacity compact wheel loader with heavy-duty bucket with bolt on teeth, enclosed cabin with adjustable suspension seat and digital radio & MP3 player, and top beacon

5.0T Font Wheel Loader ZL50F

Technical Specifications

1. Rated Load: 5000kg

2. Operating Weight: 17100kg

3. Rated Bucket Capacity: 3.0CBM

4. Max. Tractive Force: ≥ 152KN

5. Max. Breakout Force: ≥170KN

6. Max Gradeability: 30Degree

7. Max. Dumping Height: 3150mm

8. Max. Dumping Reach: 1250mm

9. Raising Time: ≤6.0s

10. Total Cycle Time: ≤11s

11. Overall Dimensions (L x W x H): 7920x3050x3400mm

12. Min. Turning Radius: 7760mm

13. Engine Model: WEICHAI STEYR WD10G220E11

14. Engine Type: In-line, Water Cooling, Dry Cylinder Fuel Injection Diesel Engine

15. Rated Engine Power: 162kW

16. Rated Engine Speed: 2200rpm

17. Transmission Mode: YJ375-X Hydraulic Torque Converter

18. Gearbox Mode: Countershaft Constant-Mesh Power Shift

19. Gear Shift: 4 Forward Shift, 2 Reverse Shift

20. Max. Speed: 41km/h

21. Main Reducing Mode of Drive Axle: Bevel Gear Grade 1 Reduction

22. Hub Reduction Mode of Drive Axle: Planetary Reduction Grade 1

23. Wheel Tread: 2250mm

24. Wheel Base: 3200mm

25. Min. Ground Clearance: 450mm

26. Drive Mode: 4-wheel Drive

27. Hydraulic System Working Pressure: 18Mpa

28. Fuel Tank Capacity: 300L

29. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Discc Brake on 4 Wheels

30. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

31. Tyre Type Specification: 23.5-25-16PR

32. Front Tyre Pressure: 0.40Mpa

33. Rear Tyre Pressure: 0.35Mpa

Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Air Conditioner, Reversing Camera, Hydraulic Quick Hitch, Extra Hydraulic Lines, LED Lights, and Floating Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
