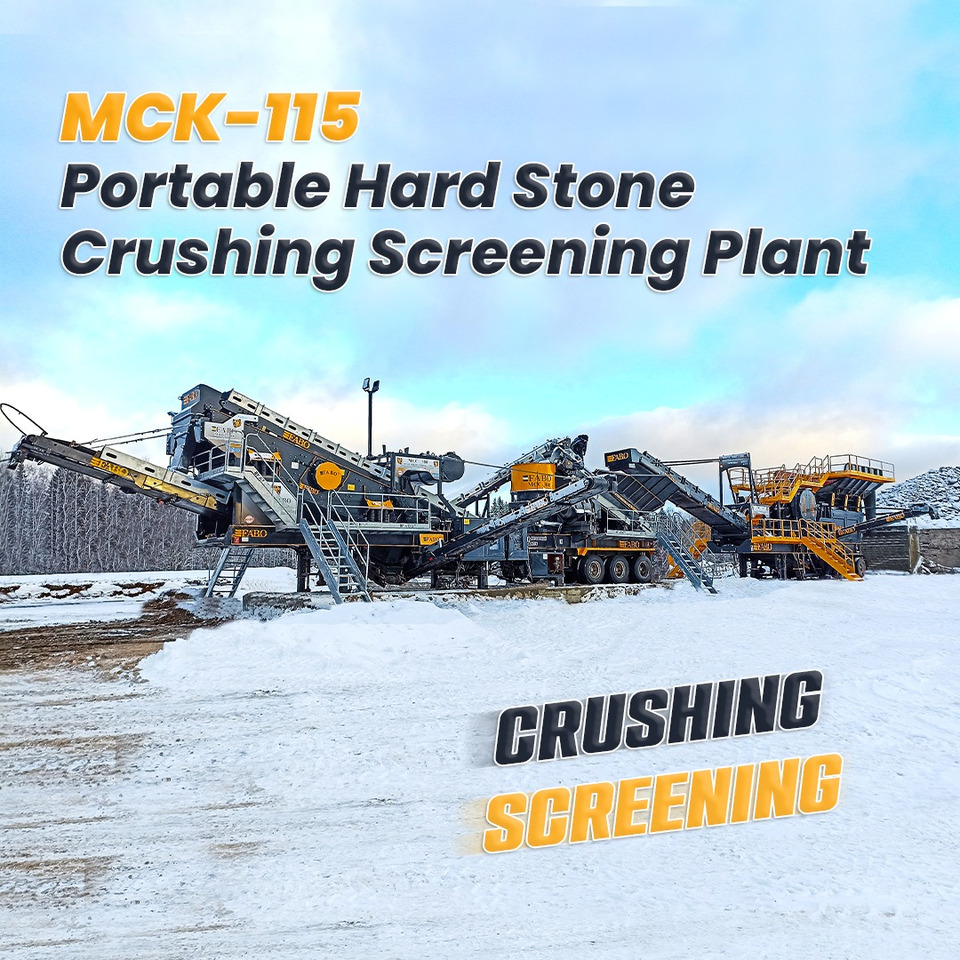

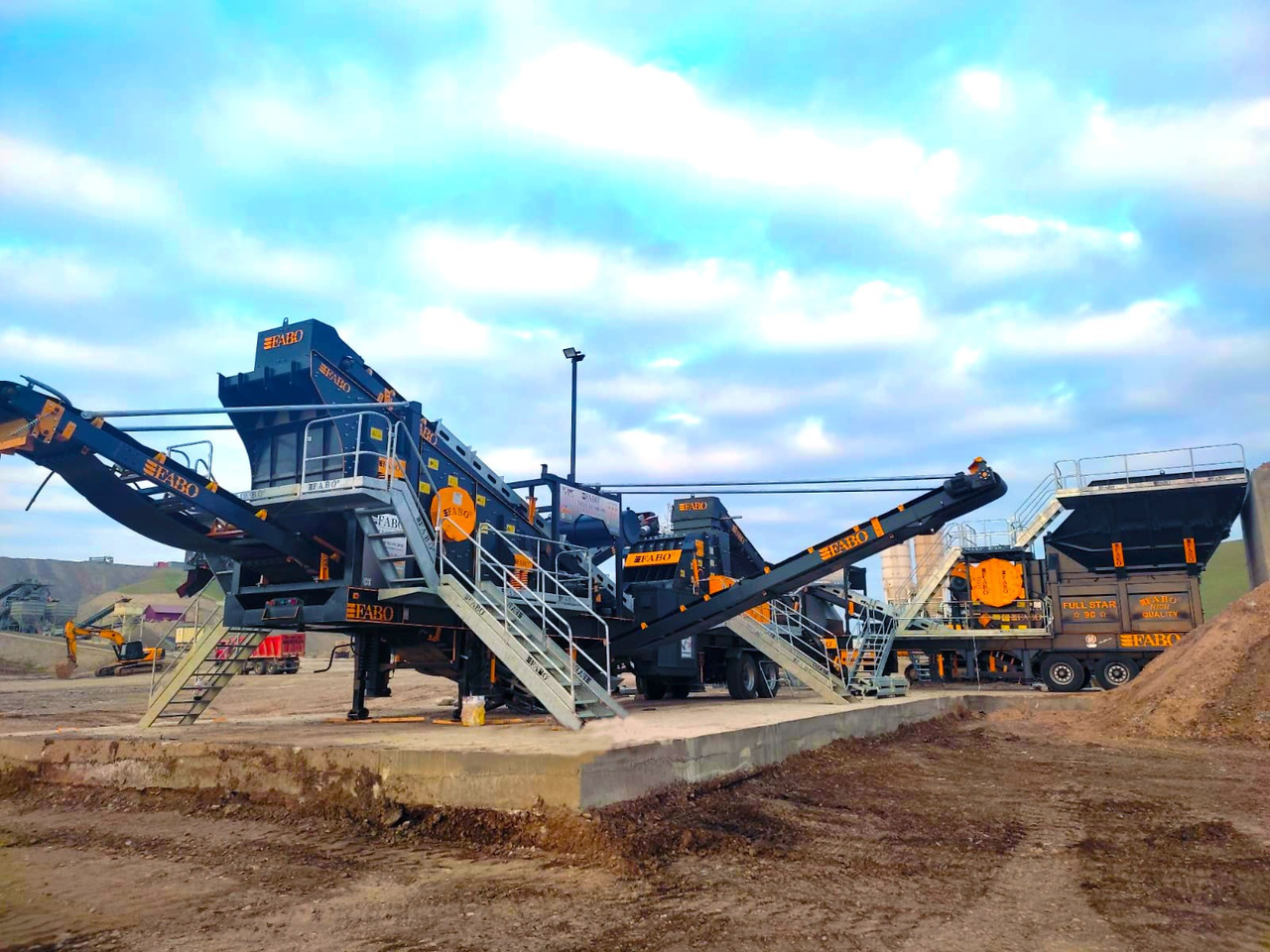

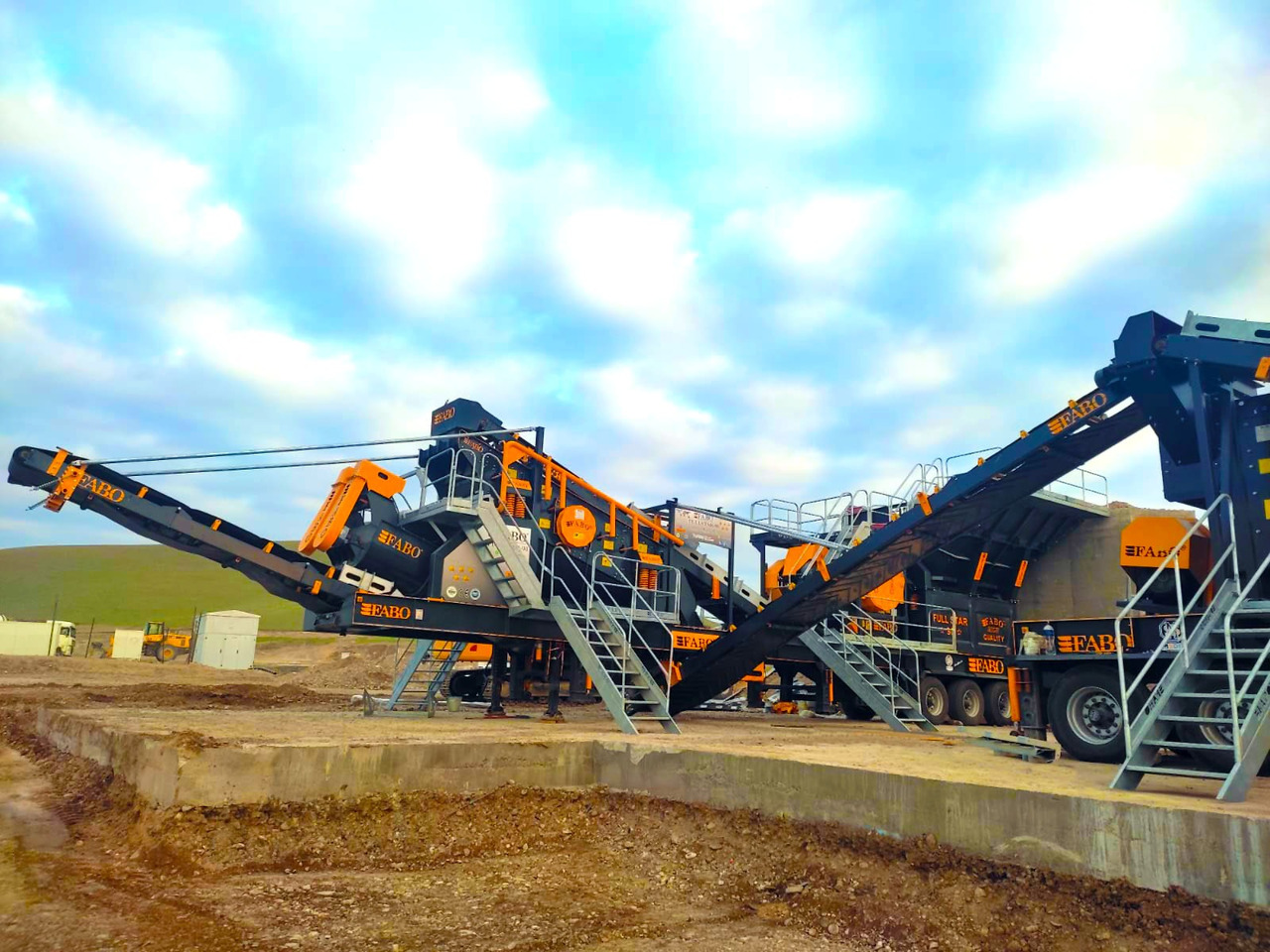

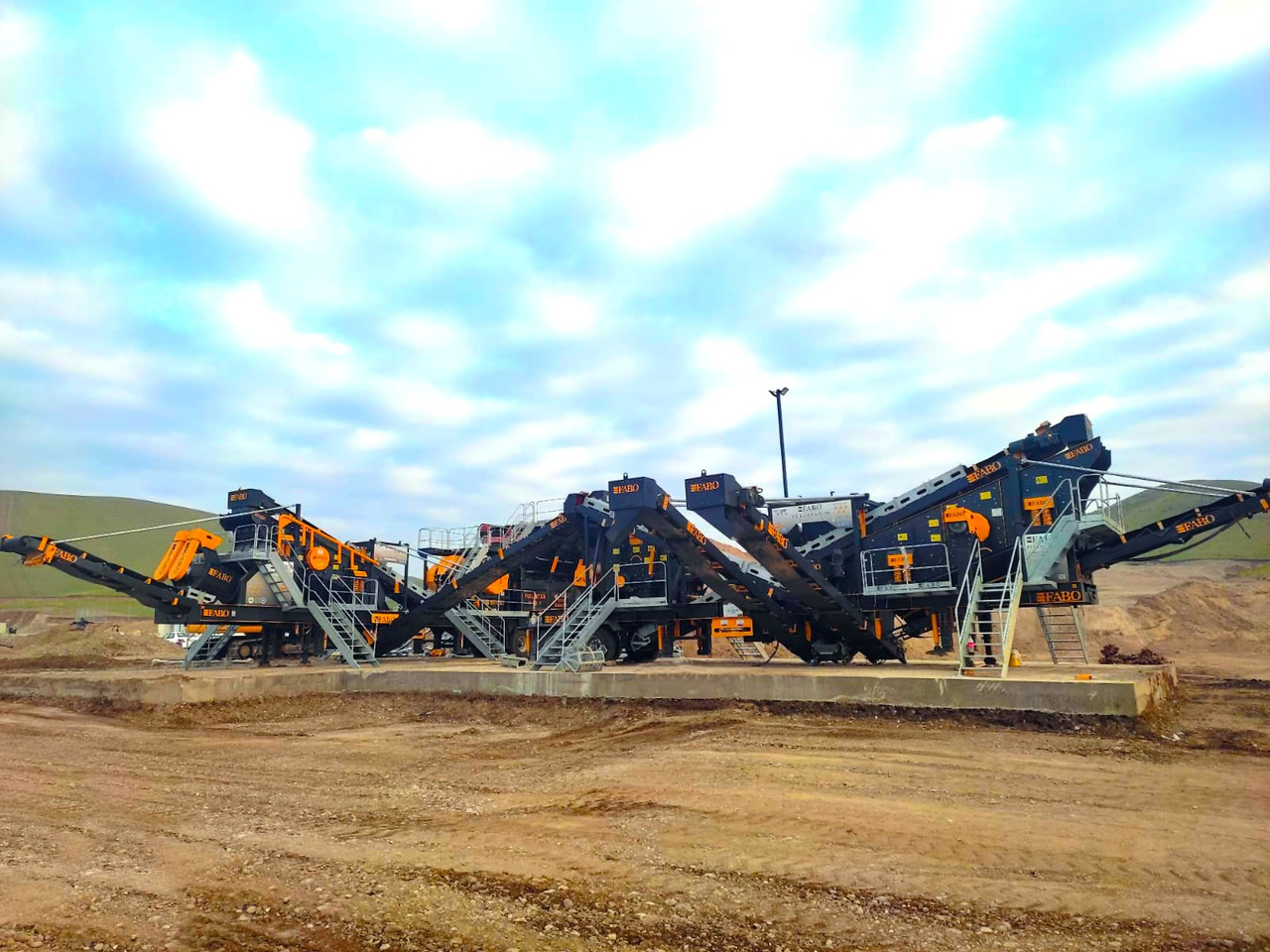

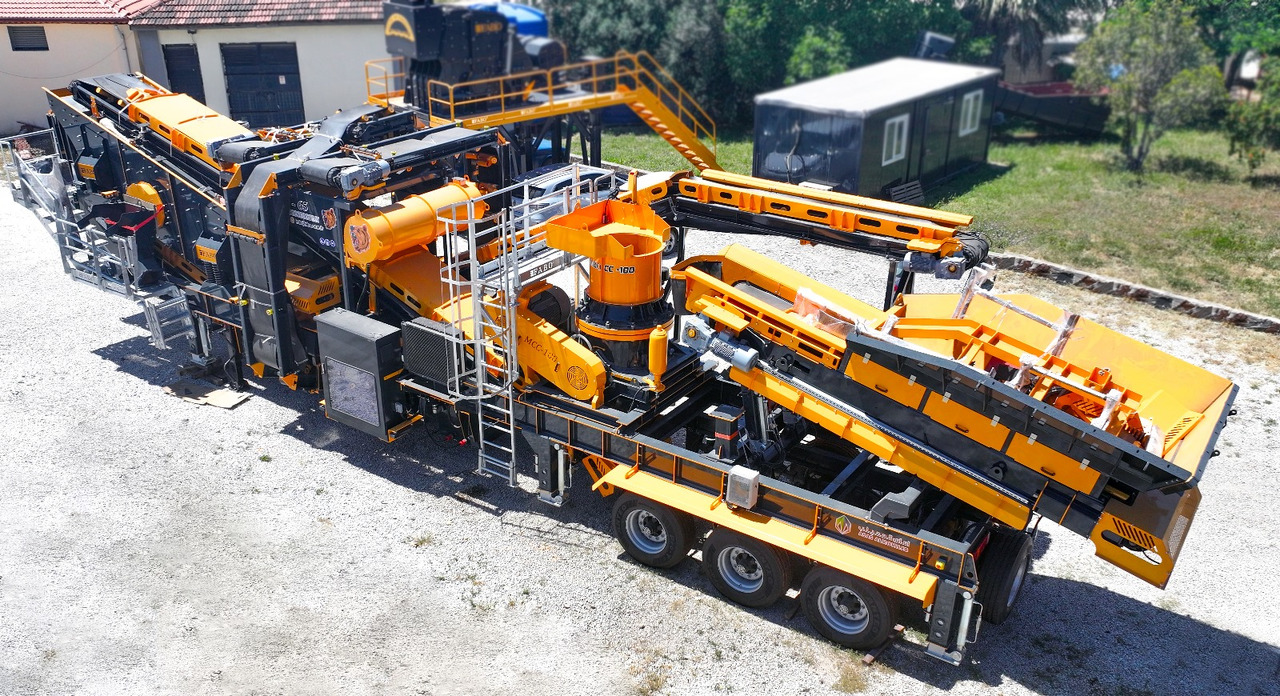

FABO MCK-115 is the biggest model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-115 includes two stages of crushing process which is made by primary jaw crusher and secondary cone crusher.

TECHNICAL SPECIFICATIONS:

- Bunker: 35 m3

- Plant Dimensions (1st chassis): 13000x4700x4400 mm

- Second chassis: 19620x4619x4364 mm

- Production Capacity: 180-300 Tons Per Hour

- 1st Crusher: Jaw Crusher – 1100x850 mm

- 2nd Crusher: Cone Crusher – FABO CC 300

- Maximum Feeding Size: 800 mm

- Vibrating Screen Size and Deck: 2200x5000mm 3-4 decks

- Total Motor Power: 450 Kw

- Generator (optional): 600 kvA

MCK-115 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

• Primary Jaw Crusher

• Cone Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
