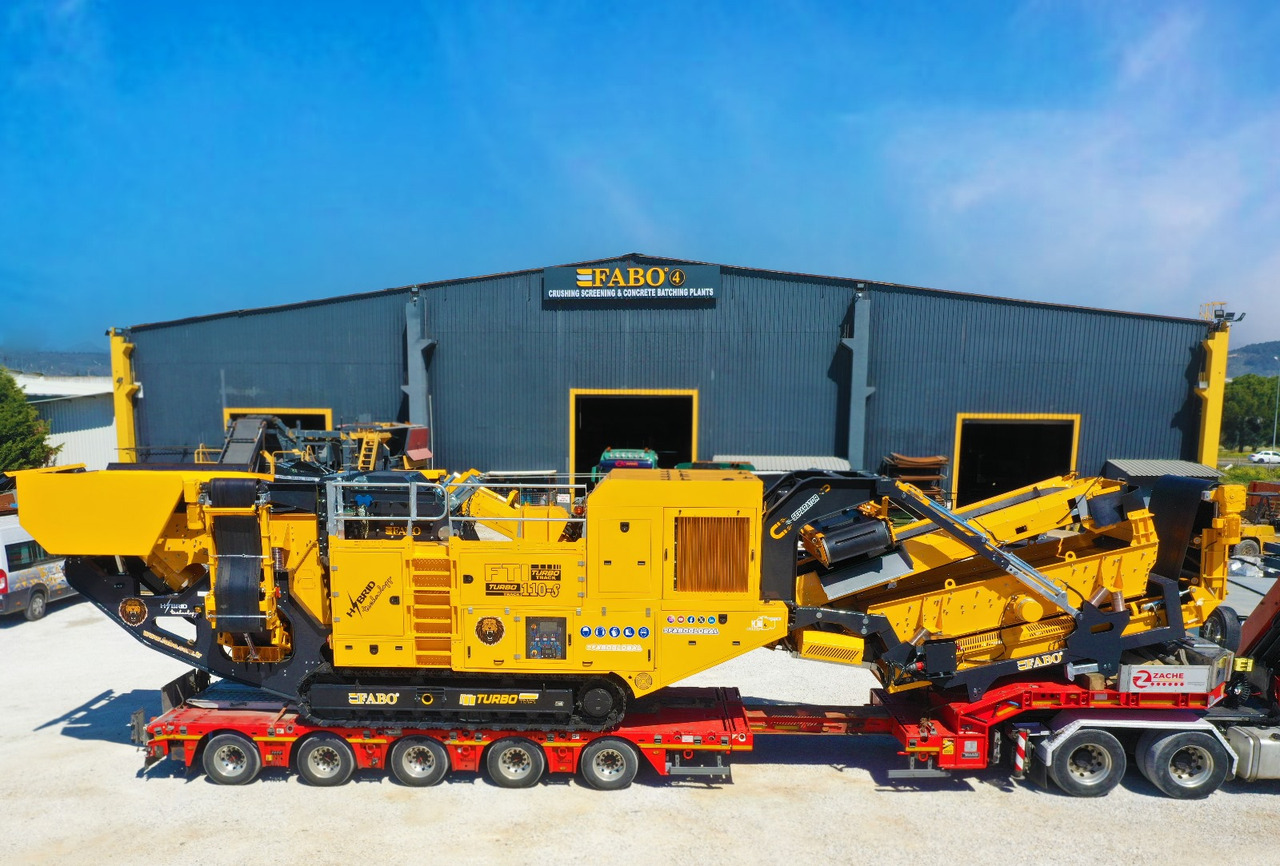

Máy nghiền di động mới FABO Mobile crusher

• All of our products are made with care and come with a 1-year warranty!
• FREE installation and operator training

FABO MVSI series is a mobile type and closed circuit crushing and screening plant, also known as sand making machine, used for high percentage of cubic shape sand production purpose, processing hard materials such as basalt, granite , etc.

The MVSI Series includes a stage in the crushing process that is carried out by a Vertical Shaft Impact Crusher that is capable of producing a high percentage of sand with a good cubic shape.

TECHNICAL SPECIFICATIONS:

-Apron Bunker: 7m3

-Plant dimensions: 15200x395080x3800 mm

-Production capacity: 100-150 tons per hour

-Crusher type and rotor size: Vertical shaft impact crusher - Ø 700 mm

-Maximum feed size: 35 mm

-Vibrating screen size and deck: 1500x4000 mm 1 deck

-Total engine power: 220 kW

-Generator (optional): 400 kvA

MVSI-700 IS A COMBINATION OF:

• Hopper

• Vibrating feeder

• VSI crusher

• High stroke vibrating sieve

• Foldable feed, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automatic System

• Dust suppression system

• Easy-to-walk platforms for maintenance

• Diesel Generator (Optional)

FOR MORE INFORMATION, FEEL FREE TO CALL US !!!
